 Press brake tooling plays a pivotal role in the metal fabrication industry, enabling the precise bending and forming of sheet metal into various shapes and components. Whether used in the automotive, aerospace, construction, or general manufacturing sectors, press brake tooling is essential for achieving high-quality, consistent results in metalworking processes.

Golin is in the field of sheet metal processing, and is engaged in the production and sale of bending tools and crowning tables. Golin can supply punches and dies for any type of press brake. These tools are made of hardened and ground high quality steels C45 and 42CrMo. Our product range includes tool types such as: Amada / Promecam, Trumpf / Wila, Bystronic/Beyeler, LVD type, American type, Gasparini Type, Colgar Type，Colly Type，Ajial-Axial Type, Hämmerle-bystronic Type，etc. Golin has an in-house R&D department specializing in designing technologically advanced solutions, with the support of our technical department we are able to design and supply special punches and dies and research the right solution for your bending project. The tools our company supplies for press brakes are efficient and durable, thanks to the ability to use cutting-edge technology and the guarantee of highly qualified employees. Reliability and competitive pricing are two other distinguishing features of our bending tools.

Golin press brake tooling's standard length is:

Two kinds of L835mm and S415mm. According to the length of the press brake machine worktable, it is used in combination.

The standard segmentation size is:

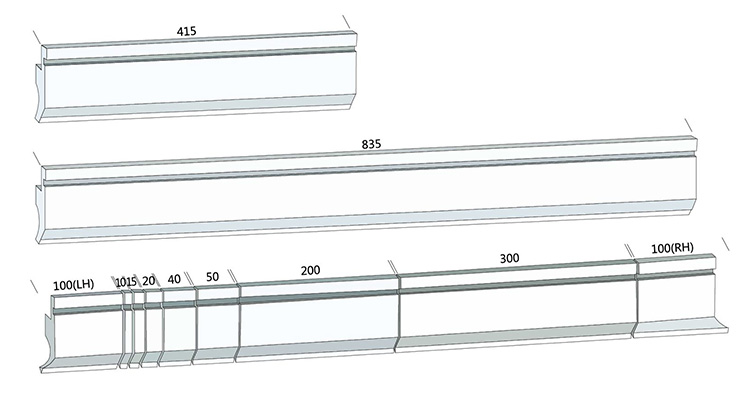

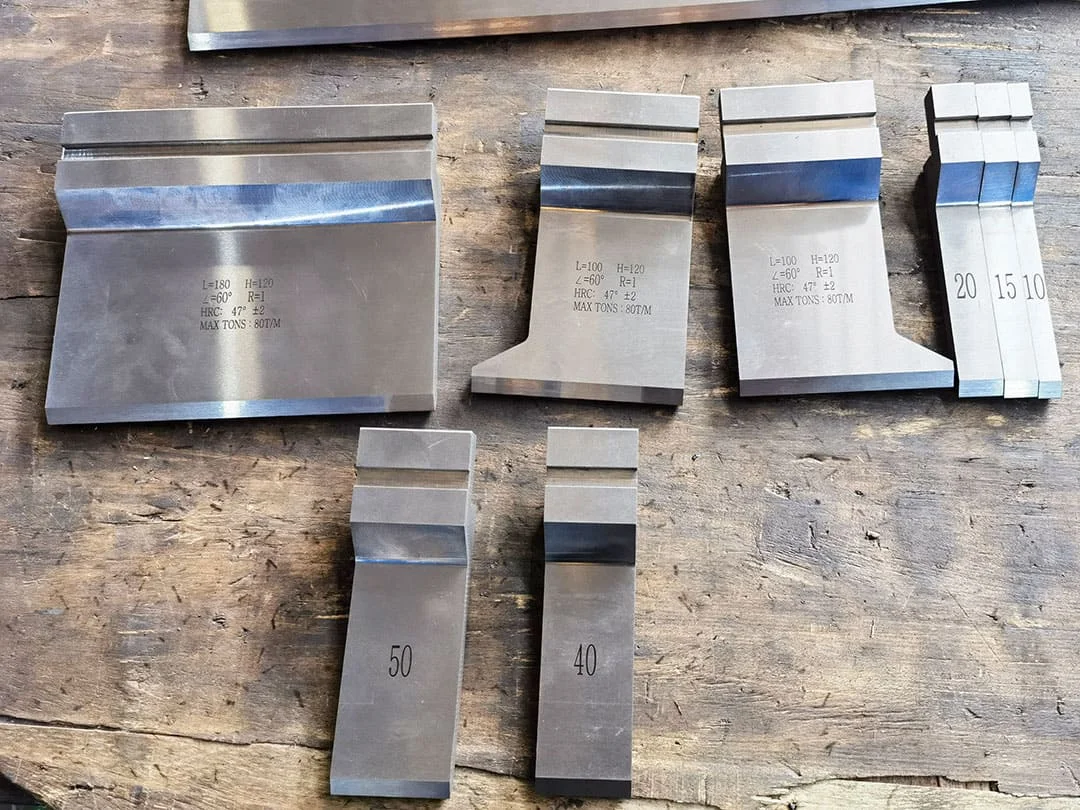

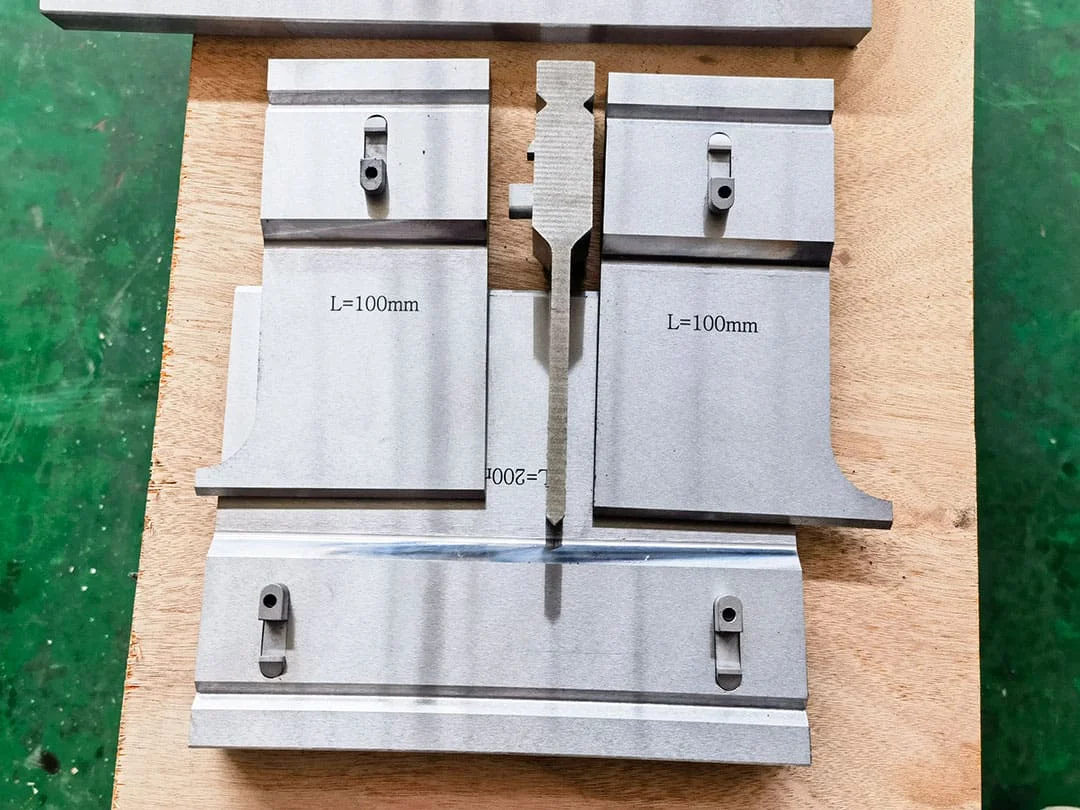

Upper punch: 100 (left) 10, 15, 20, 40, 50, 200, 300, 100 (right) = 835mm (set)

■In addition to the above standard length, if you need to customize a special length, please explain.

1.Selection Of Raw Materials

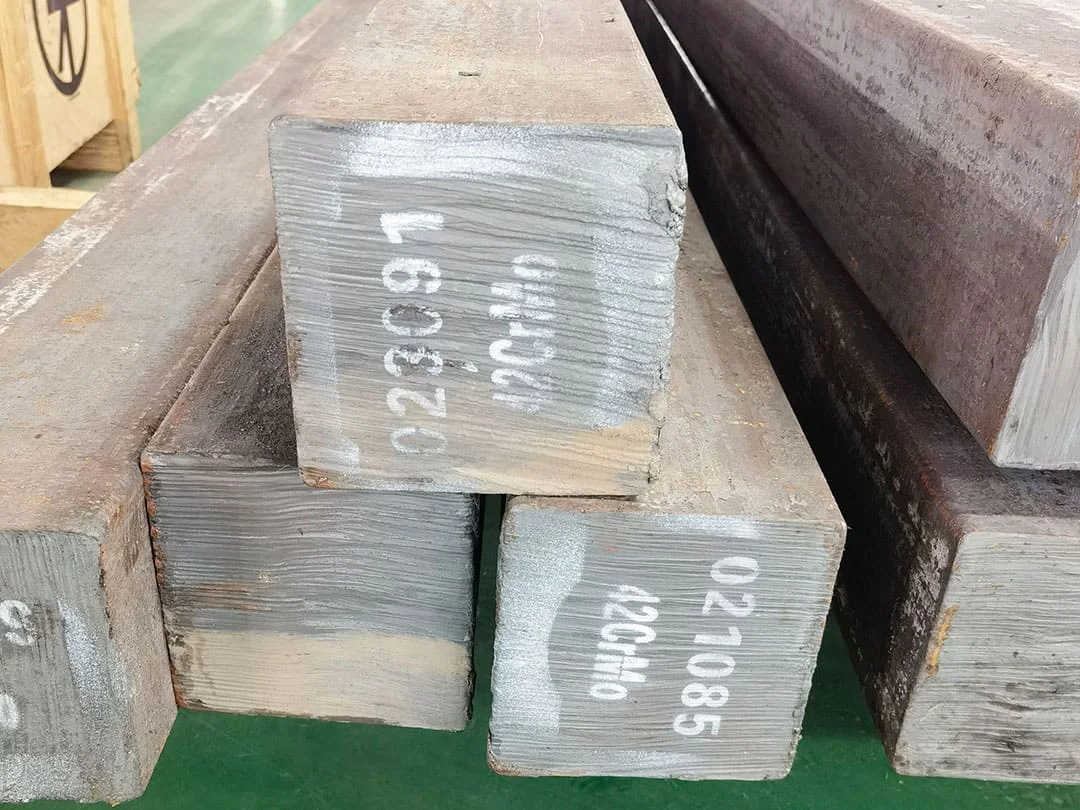

Choosing the right raw material is only the first step.For the manufacture of press brake tooling, 42CrMo material is the ideal choice, Its main properties are high strength, high hardenability, good toughness, small quenching deformation, high temperature creep strength and high durability. It’s able to withstand temperatures below 500 degrees, making it a versatile and reliable performance and superior processability, making it an ideal choice for even the most demanding applications. Furthermore, we can offer material option complying with customers’ demand.

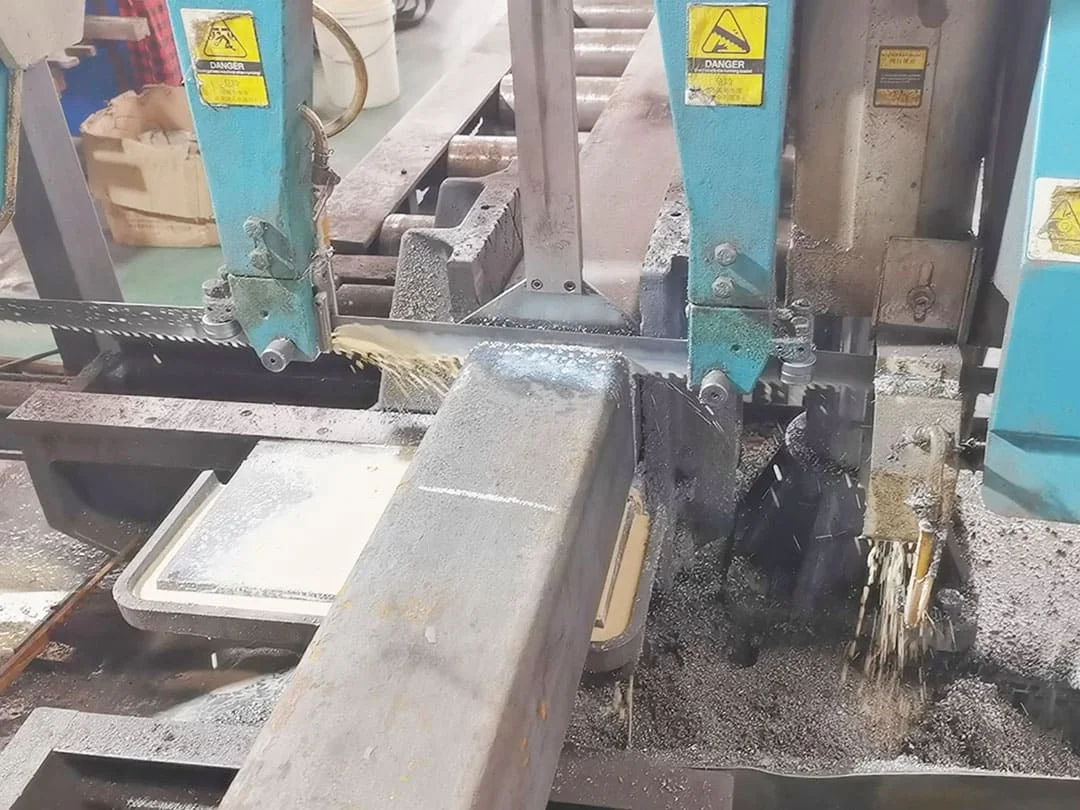

2.Material Blanking And Forging

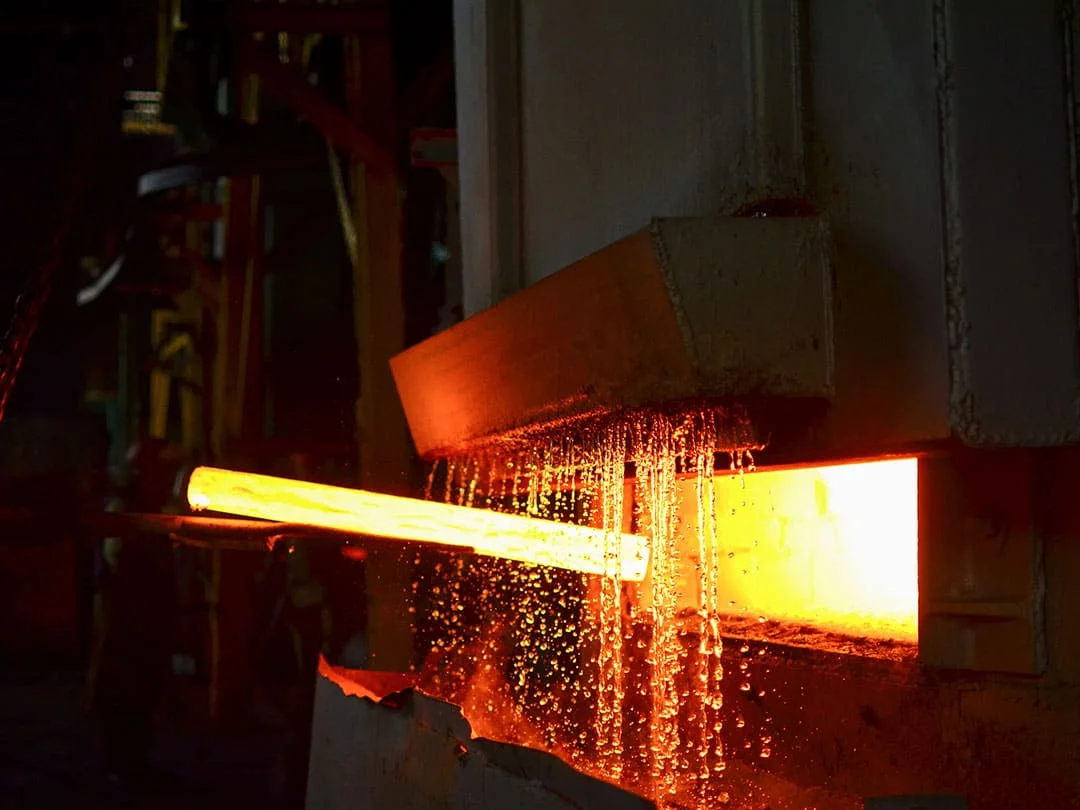

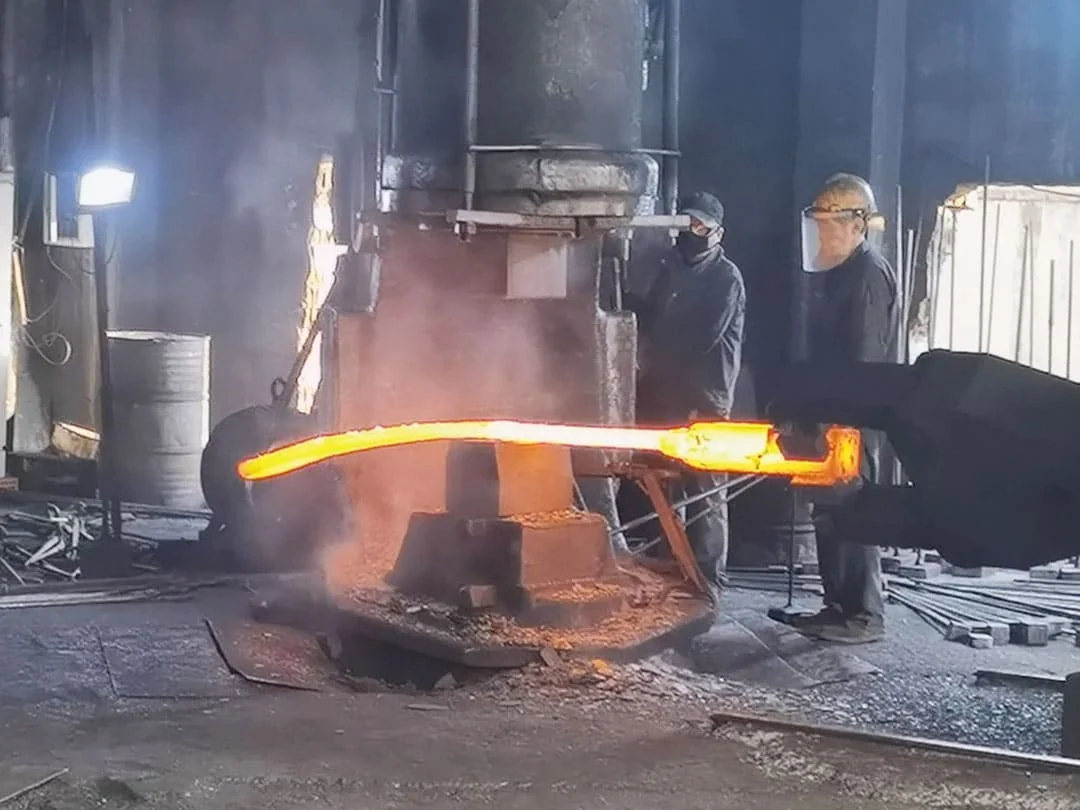

High quality tools need to be forged. We cut the material of corresponding weight according to the drawing size, repeatedly forge it with an air hammer, and forge it to the overall dimensions of the mold and provide a machining allowance. Forging will not only allow us to obtain the corresponding size, but more importantly, it will increase the density and toughness of our press brake tooling, making them less likely to crack and break, making them stronger and more durable.

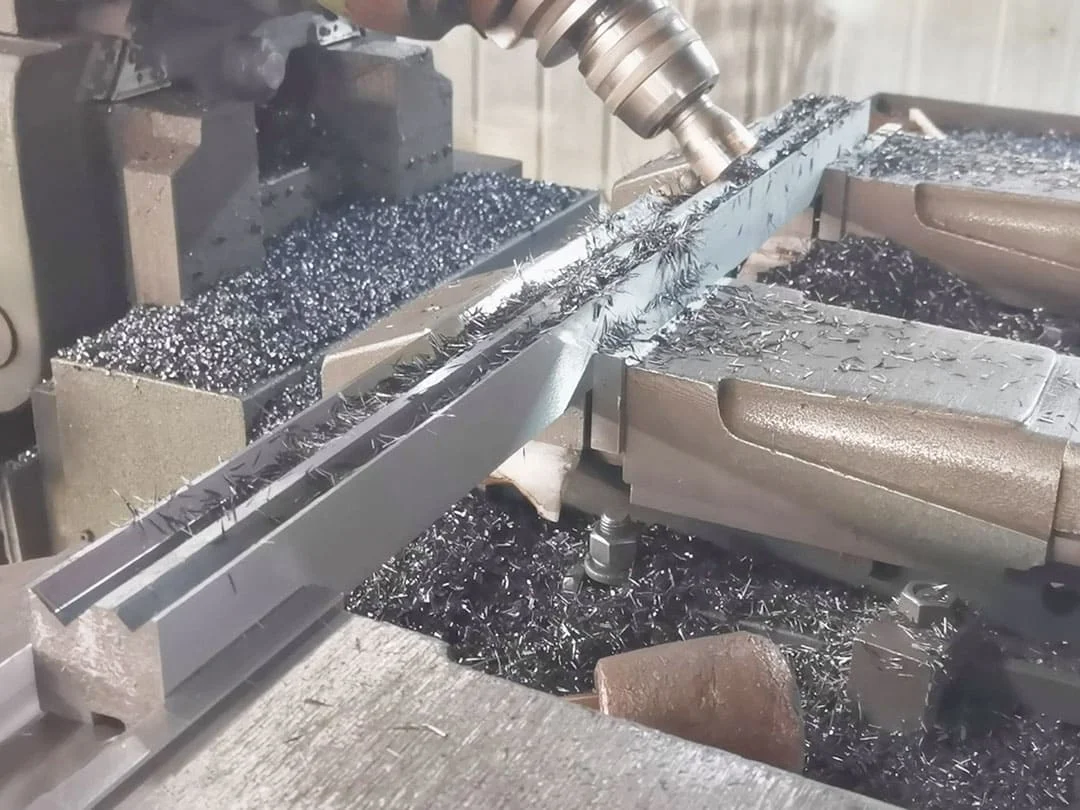

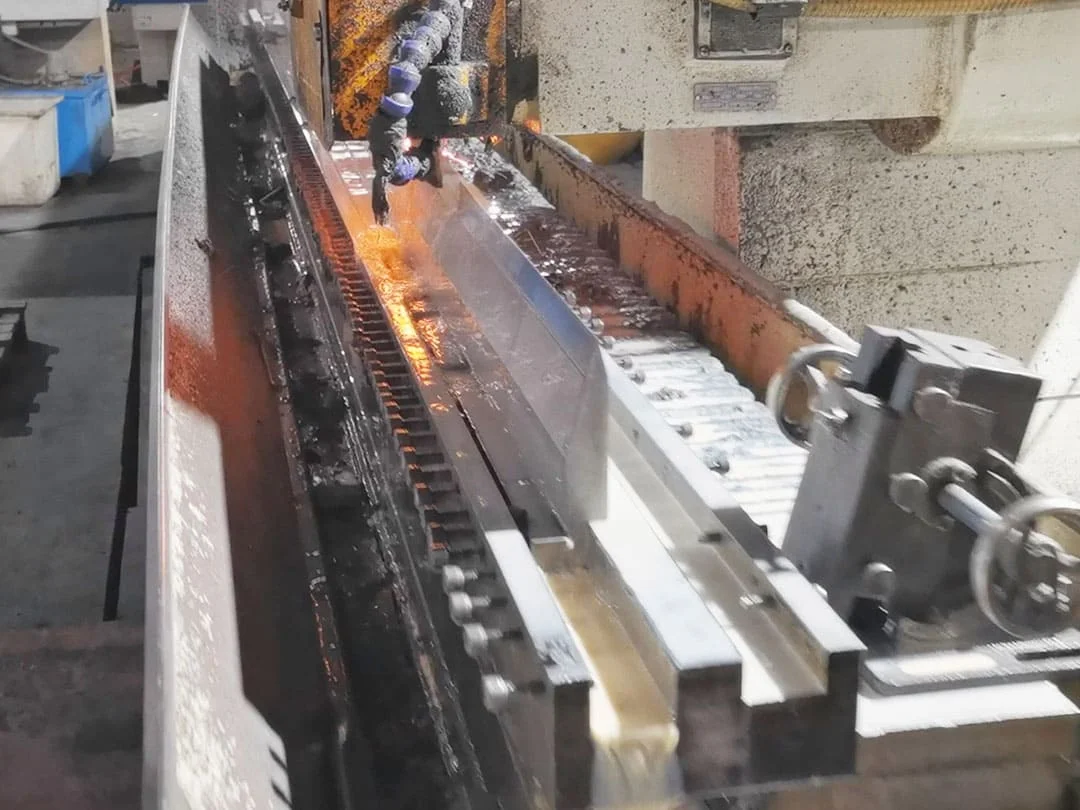

3.Rough Machining

Understanding Press Brake Tooling

Press brake tooling refers to the components used in a press brake machine to shape metal. These components consist primarily of the punch and die. The punch is the upper tool that descends onto the metal, while the die is the lower tool that supports the metal and defines its final shape. The interaction between the punch and die determines the angle, radius, and overall form of the bent metal.

4.Heat Treatment

Our press brake tooling undergo a rigorous whole hardening process,With a standard declared hardness of HRC48°±2 for the whole body, With a standard declared hardness of HRC54°-58° for the working area (mainly the shoulders of the die, and the tip of the punch), achieved through laser hardening of critical parts. Hardness can be adjusted according to application or customer needs.

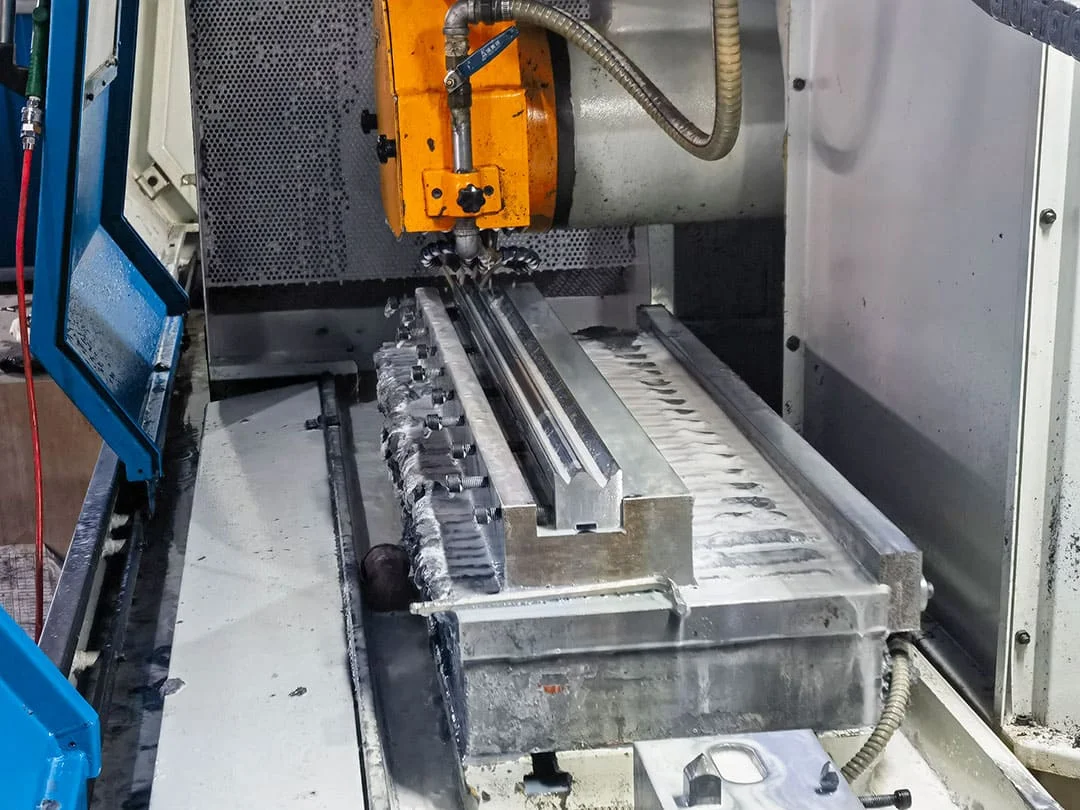

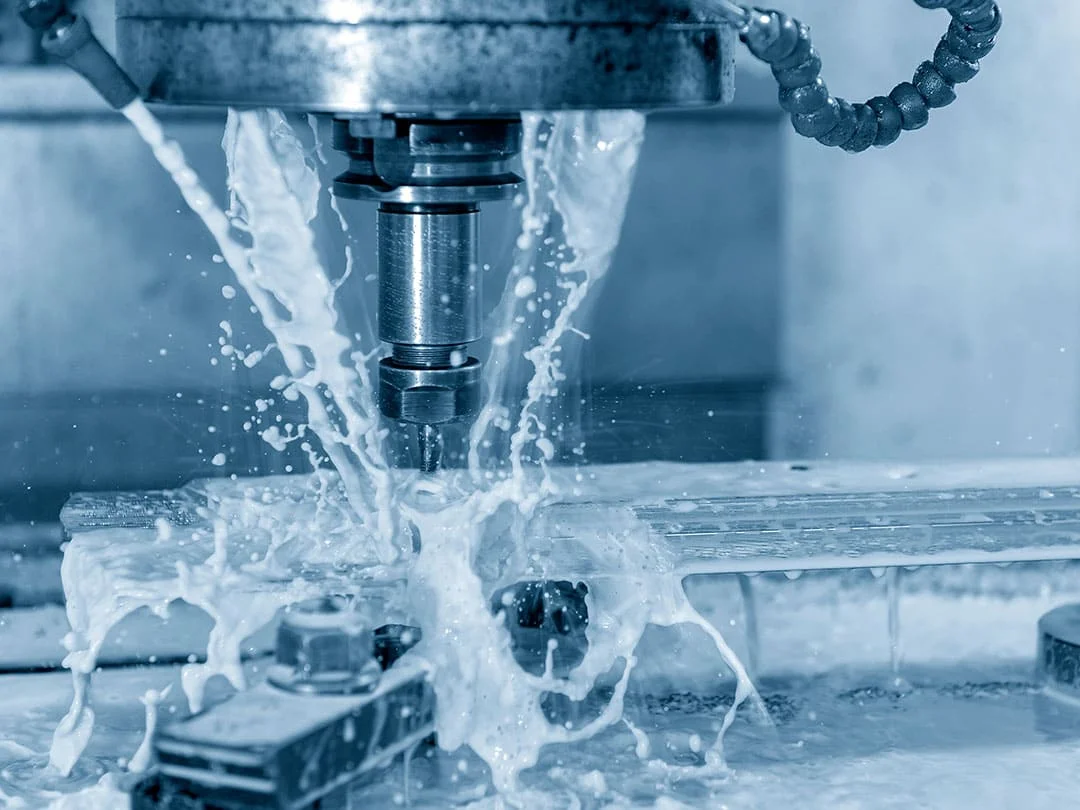

5.Precision Machining

Thanks to our CNC milling machines and CNC grinding machines, its tolerance be controlled within ±0.03mm,This process provides the treated surface with an extremely high degree of finish. You can rest assured that your tools will perform to the highest standards and meet your exact specifications every time.

6.Tool Segmentation

ANHUI TOOLING offers the standard length of press brake tooling:835mm,805mm,800mm,550mm,515mm,510mm,500mm,415mm, 835mm, 835mm sectioned, 805mm sectioned, 550mm sectioned, 515mm sectioned.Can be segmented according to standard or segmented according to customer needs. We also support customized sectionalized length of press brake tool, including special length and long length up to 2000mm or higher. We also provide long configurations of 6000-12000mm for heavy bending machine. Trust us to design the tailored solutions to meet your bending requirements.

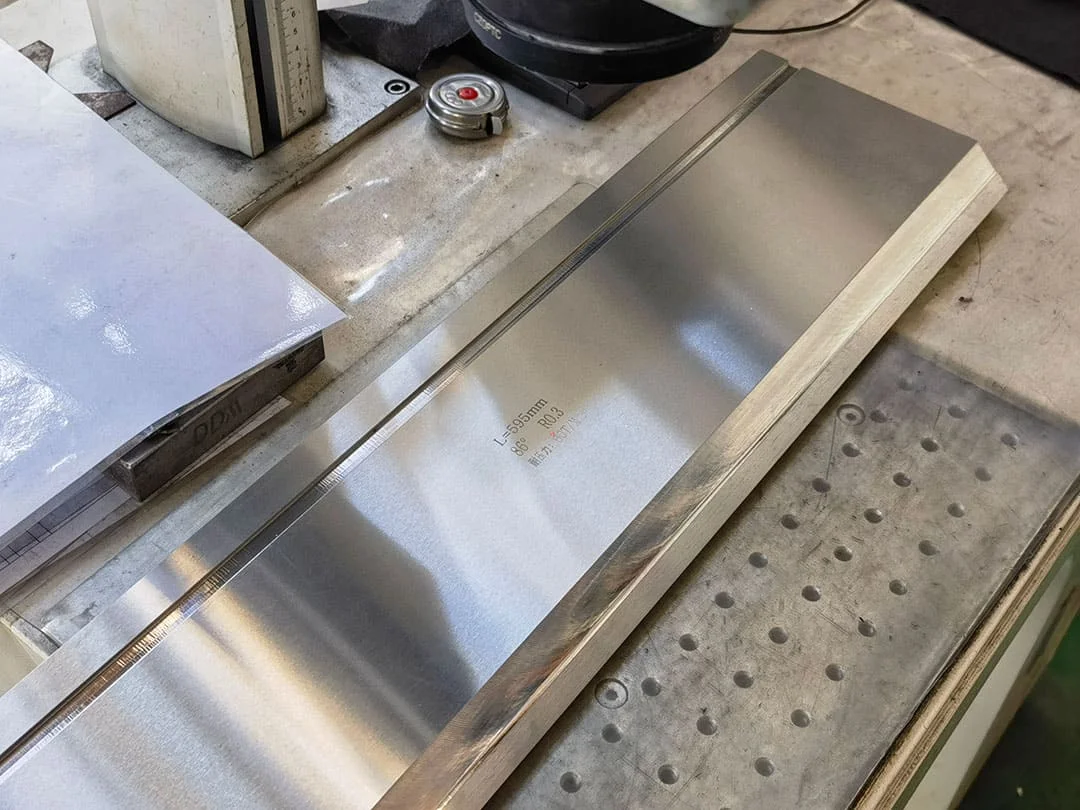

7.Laser Marking

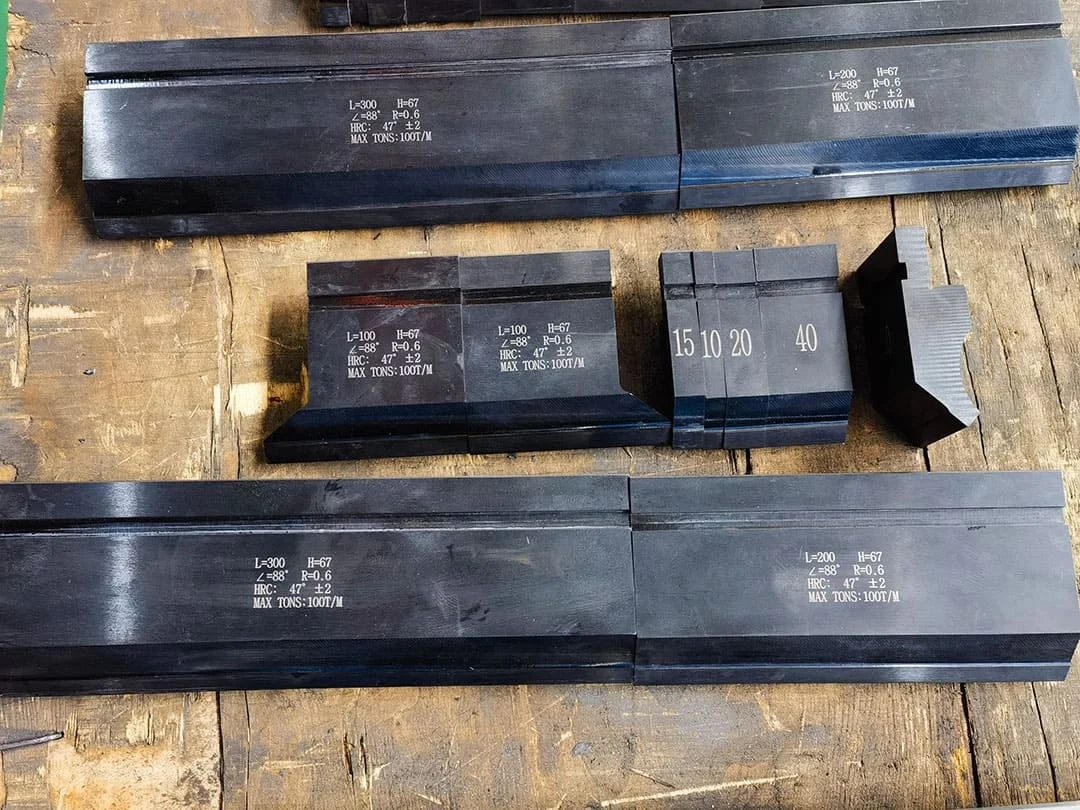

Our press brake tooling come with laser marking that includes the tool’s code, angle, radius, die-opening, tonnage, and other important data, ensuring that you have all the necessary information at your fingertips. Laser marking is a non-contact and non-destructive process, making it a safer and more environmentally friendly option compared to traditional marking methods. Laser marking according to customer requirements, We have our own brand and also support OEM.

8.Quality Testing

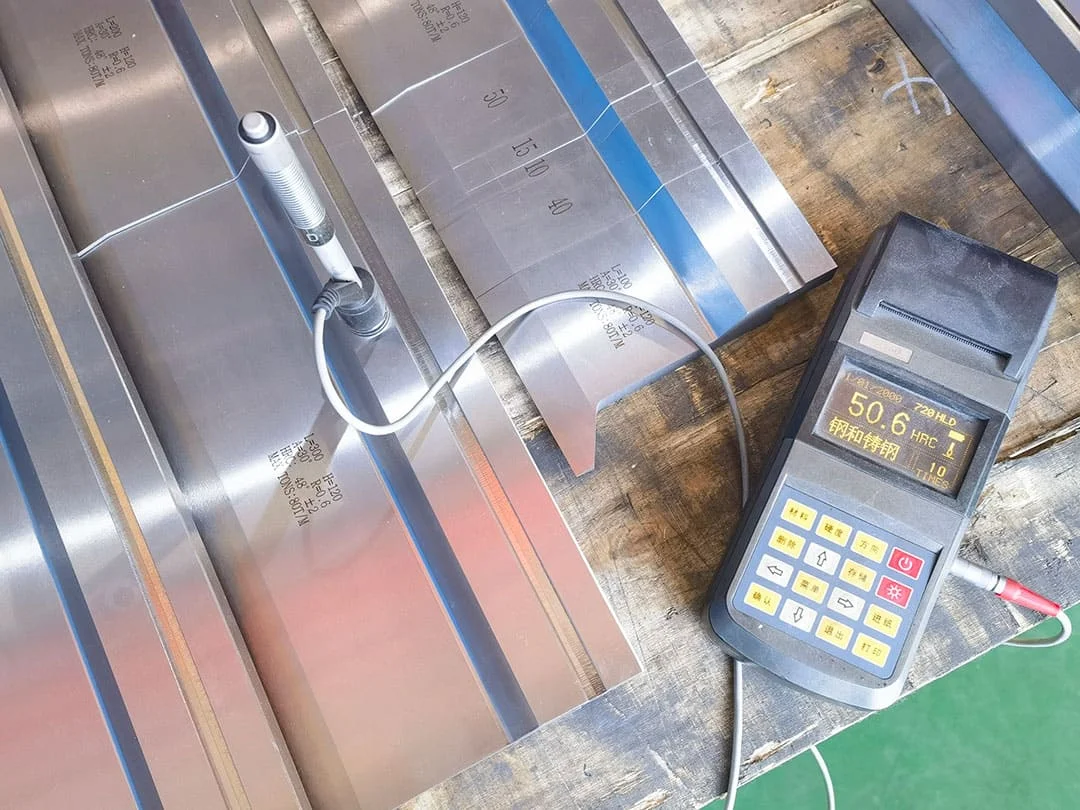

Quality control is essential in our manufacturing process, ensuring that our products meet the highest standards of quality and reliability for our customers. We implement rigorous processes and procedures to ensure that every product meets our strict quality standards, Size inspection,Hardness testing,Die Bending Test,from raw material selection to finished product inspection. Only when the product quality inspection is qualified, will we arrange shipment.

9.Packing And Delivery

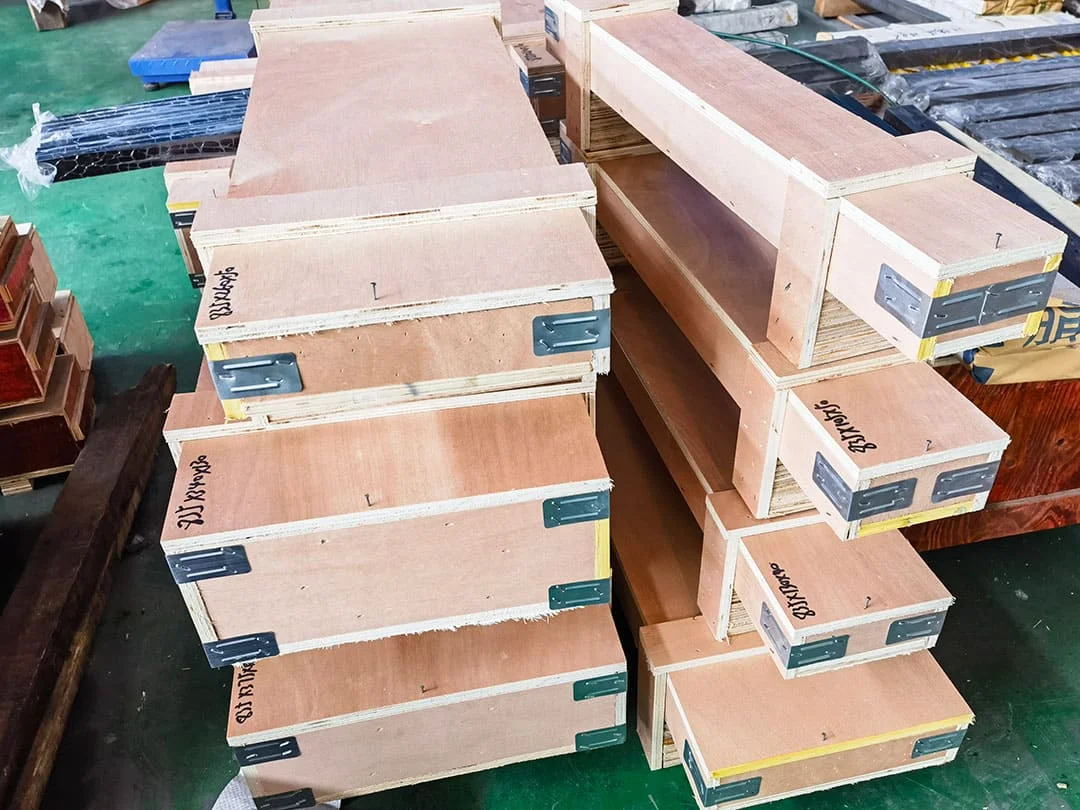

We use wooden boxes for packaging to better protect tools and export transportation.With our extensive inventory of standard tools in China, we’re able to provide lightning-fast delivery of standard pieces within just 2-3 days. For sectioned sets and cutting of tooling, we can typically have everything ready within a week. When you trust us with your tooling needs, you can count on us for speedy and efficient delivery every time.

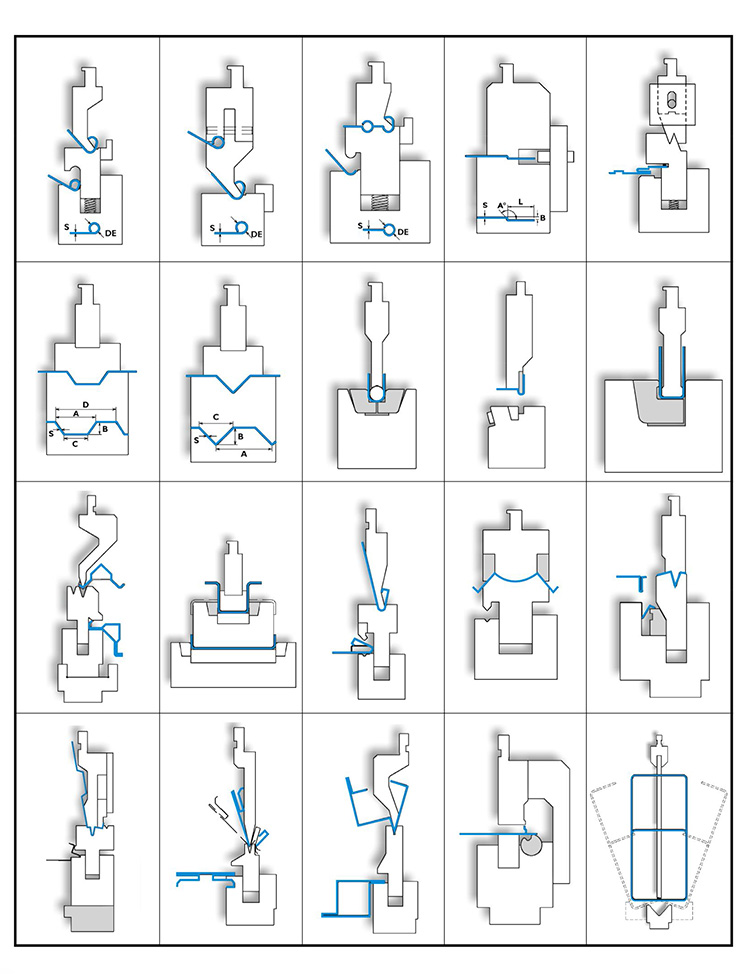

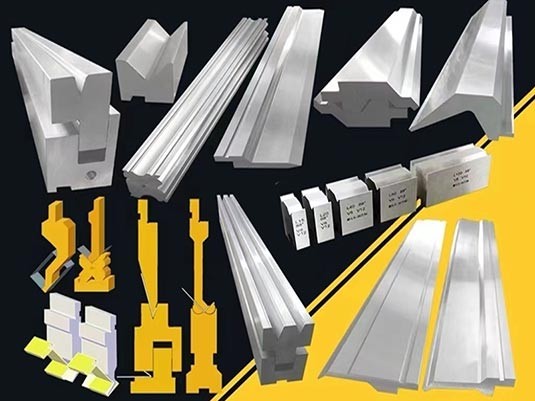

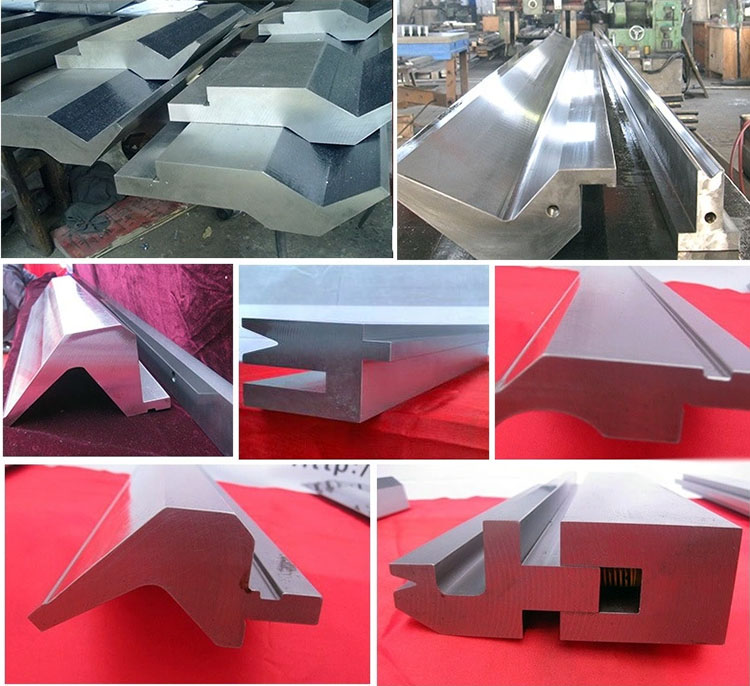

Types of Press Brake Tooling

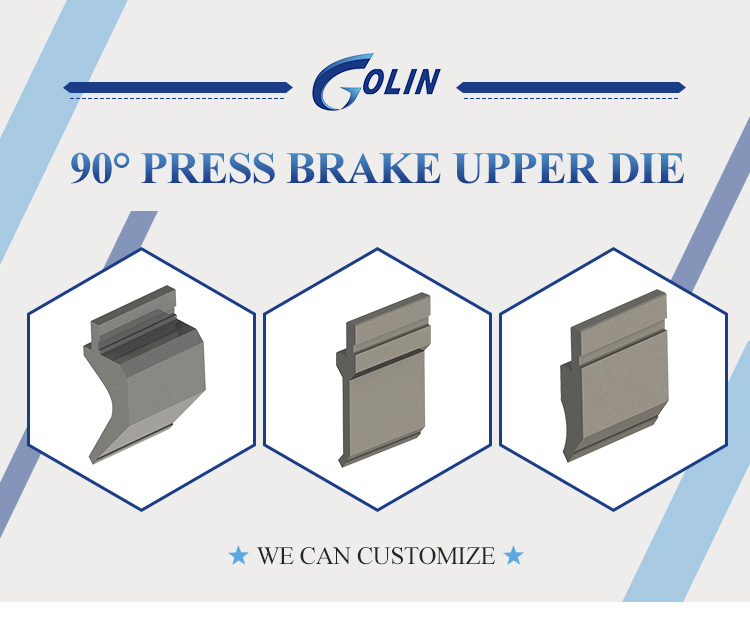

1. Standard Tooling

• Description: Standard, or conventional, tooling consists of simple, straightforward punch and die sets used for common bending applications.

• Applications: Suitable for producing a wide range of standard bends, such as 90-degree bends or U-bends, in various thicknesses of metal.

2. Precision Ground Tooling

• Description: Precision ground tooling is manufactured to extremely tight tolerances, ensuring higher accuracy and consistency in the bending process.

• Applications: Ideal for applications where precise, repeatable results are critical, such as in the aerospace and automotive industries.

3. American (Promecam) Style Tooling

• Description: A type of tooling that is versatile and easy to use, with tools that can be segmented and configured in various combinations.

• Applications: Commonly used in smaller shops or for custom bending operations where flexibility is important.

4. European Style Tooling

• Description: European-style tooling is known for its modular design, with shorter tool lengths and a wider range of configurations.

• Applications: Preferred in high-production environments due to its quick changeover capabilities and compatibility with automated systems.

5. Gooseneck Punches

• Description: These punches have a curved, gooseneck shape that allows for deeper bends without interference from the punch body.

• Applications: Used for forming complex shapes, such as Z-bends or offset bends, where clearance is required.

6. Offset Tooling

• Description: Offset tooling is designed to create offset bends, where two parallel sections of the metal are at different heights.

• Applications: Common in the manufacturing of brackets, frames, and other components that require offset geometry.

7. Hemming Tooling

• Description: Hemming tooling is used to fold the edge of the metal back onto itself, creating a smooth, rounded edge.

• Applications: Often used in the automotive and appliance industries to produce safe, finished edges on metal panels.

8. Forming Tooling

• Description: Forming tooling includes specialized punches and dies for creating complex shapes beyond simple bends.

• Applications: Used in custom metal fabrication to produce components with unique profiles, such as channels, ribs, or contours.

Factors Influencing Tooling Selection

Selecting the right press brake tooling is crucial for achieving the desired bending results. Several factors influence tooling selection, including:

• Material Type and Thickness: Different materials (e.g., steel, aluminum, copper) and thicknesses require specific tooling to achieve clean, accurate bends without causing material damage.

• Bend Angle and Radius: The desired angle and radius of the bend will determine the shape and size of the punch and die.

• Tooling Material: Tooling is typically made from hardened steel, but advanced materials like carbide or coated steel may be used for specific applications to extend tool life and improve performance.

• Machine Compatibility: The tooling must be compatible with the press brake machine's tonnage, bed length, and other specifications.

Advantages of High-Quality Press Brake Tooling

Investing in high-quality press brake tooling offers several benefits:

• Precision and Accuracy: Superior tooling ensures that each bend is precise, meeting tight tolerances and reducing waste.

• Durability: High-quality tooling is more resistant to wear and tear, leading to longer tool life and reduced replacement costs.

• Versatility: Advanced tooling systems can handle a wide range of bending operations, increasing the flexibility of the press brake machine.

• Efficiency: Quick-change tooling systems and modular designs allow for faster setup times, improving overall production efficiency.

Conclusion

Press brake tooling is an integral part of metal fabrication, providing the precision and versatility needed to create complex, high-quality components. Understanding the different types of tooling and their applications helps manufacturers choose the right tools for their specific needs, ensuring efficient production and superior results. As technology advances, press brake tooling continues to evolve, offering even greater capabilities and opportunities for innovation in metalworking.
