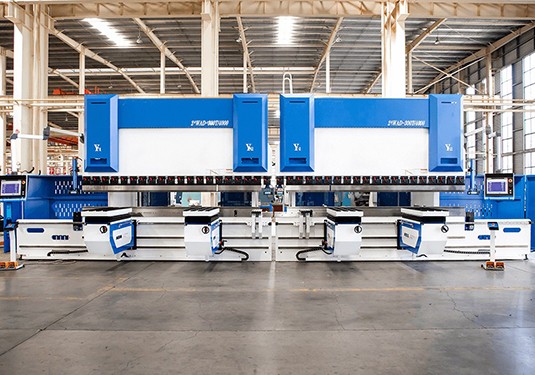

The tandem system enables the two machines to be operated in simultaneous or stand-alone mode. It is mainly used in light pole, communication tower, power tower, construction machinery and other large workpieces. Compared with large single machines, it is easier to install and faster than large machines. It is a better choice for enterprises with output value requirements.

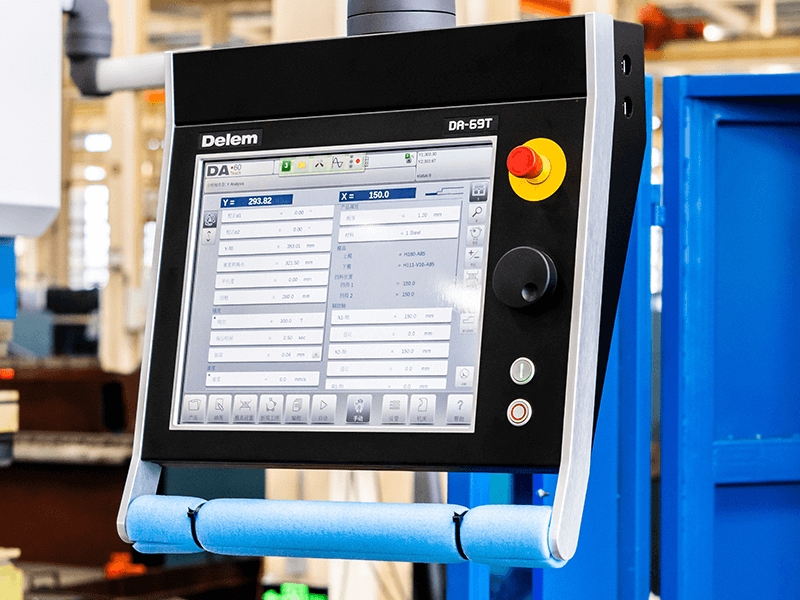

CNC Controller

There is no doubt that it is the brain of the whole machine. We offer Delem, ESA and Cybelec brand controller, which are imported from the Netherlands, Italy and Switzerland respectively.

The efficient algorithm optimizes the running cycle of bending, reduces the time required to set the work step, and makes bending more efficient, especially for batch processing.

In addition, the system can meet 2D and 3D graphics editing.

Hydraulic System

This is an electro-hydraulic servo synchronous hydraulic control system with short hydraulic cylinder spacing. It has strong anti eccentric load ability, high synchronization accuracy, low cost and high power density ratio.

The pressure of the hydraulic system can be adjusted according to the practical use to meet the requirements of bending force.

ADH adopts the well-known German brand Hawei hydraulic system, which has the characteristics of low failure rate and high efficiency.

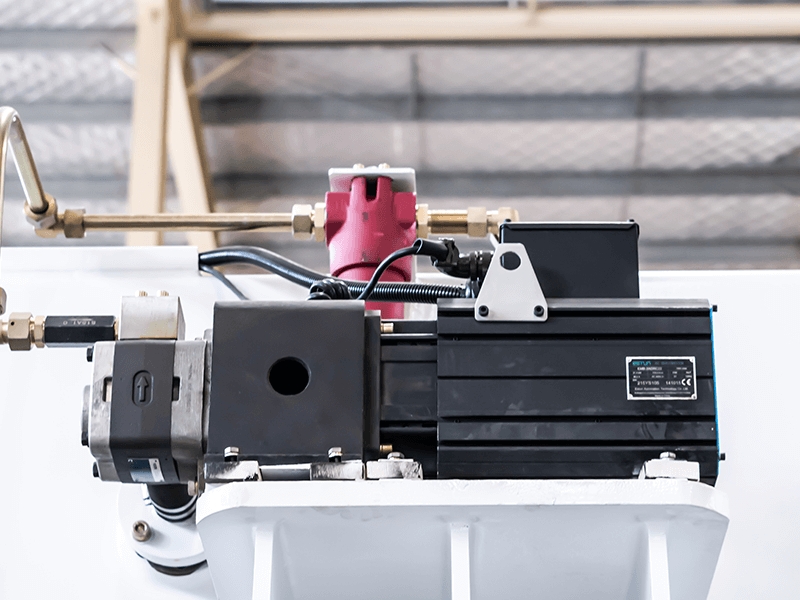

Motor

As we all know, servo motor has become the mainstream, with low energy consumption, high dynamics and improving machine production efficiency as the main goal. Compared with traditional motors, the energy consumption can be saved up to 35%, so it can bring customers the advantages of high efficiency and low operation cost.

At the same time, we also have an efficient and energy-saving motor from Siemens, Germany, which can meet the daily production needs of customers, and its work efficiency is much higher than that of ordinary motors.

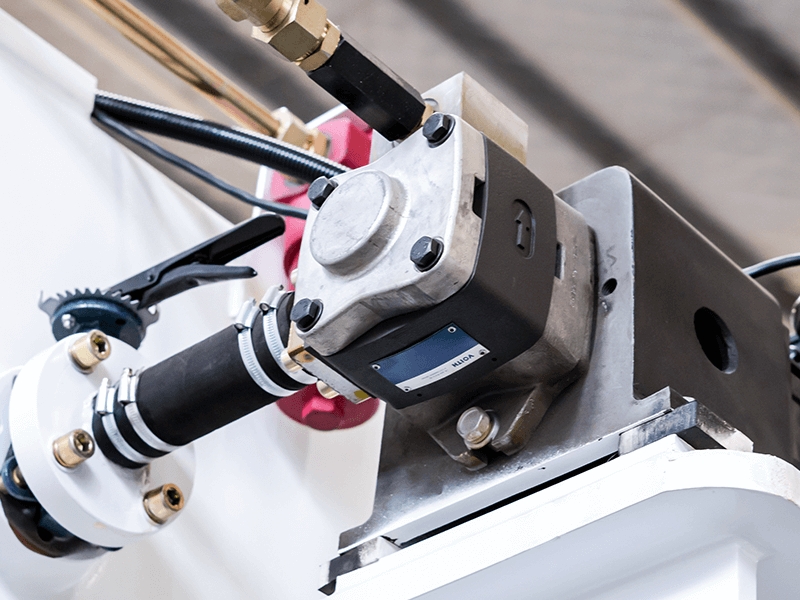

Oil Pump

The oil pump is made of high-strength cast iron, with unique internal noise reduction design, low sensitivity to oil pollution and long service life.

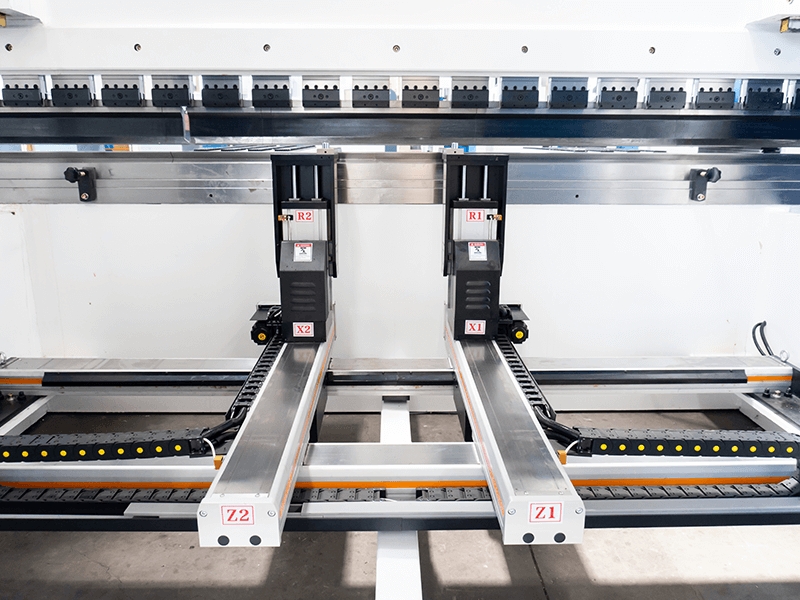

Backgauge

We use imported ball screw and linear guide rail to ensure that the movement accuracy of X-axis is higher than that of screw rod.

The rear stop adopts synchronous pulley mechanism controlled by servo motor instead of stepping motor.

The whole backgauge system is tempered at high temperature, which is conducive to completely eliminate the internal stress, improve the plasticity and toughness of the metal, and make you no longer suffer from any loss of accuracy caused by frame deformation.

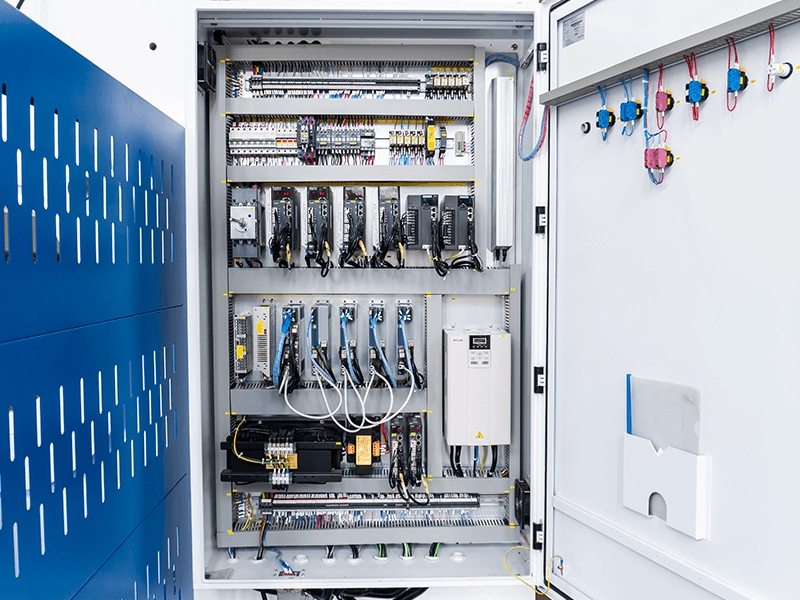

Electrical Parts

It adopts genuine Schneider pieces imported from France, which is stable and durable with long service life;

Equipped with Estun original adaptive electrical box assembly, with strong anti-interference ability and stable electrical operation.

Crowning

Independent design, calculate the compensation value according to the total deformation of the ram and worktable, so as to make the deformation curve of the bed fit perfectly with the compensation curve, and better ensure the consistency of product straightness and angle.

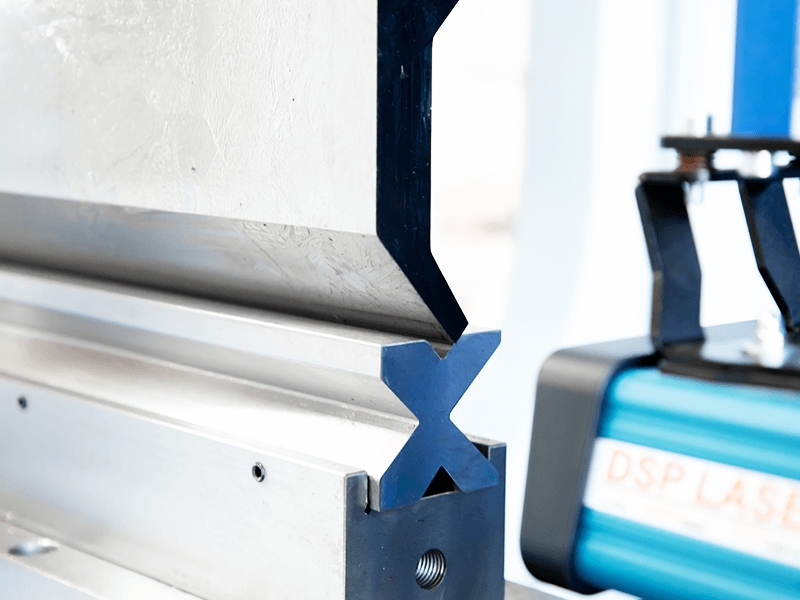

Punches & Dies

Press brake punches and dies will be one of the most important topics we discuss before you place the order. Any bending shape will be completed by a suitable set of punch and die. We can provide appropriate toolings according to different bending requirements of customers.

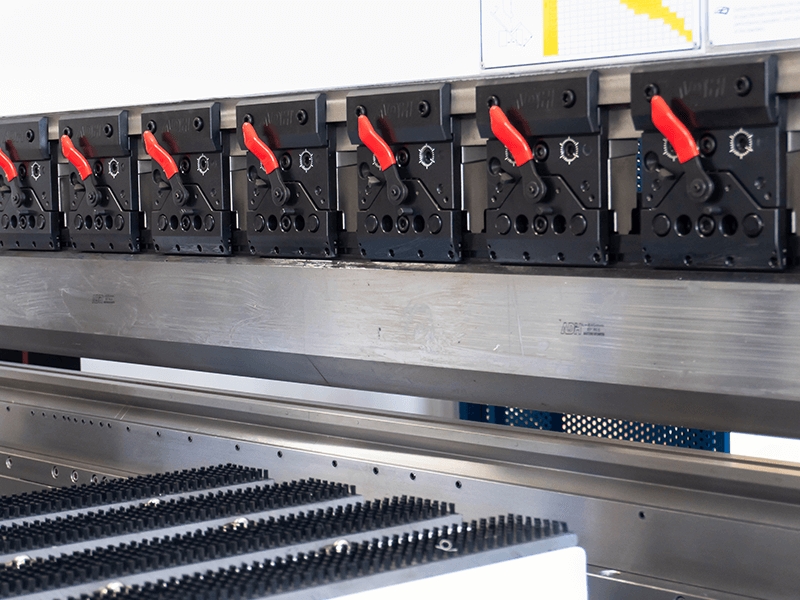

Double Side Fast Clamp

Quickly change the top punch to save time

Sheet Follower

The front support is supported by double linear guide rails.

When the workpiece is bent, the sheet follower can realize the turning and following function. The following angle and speed are automatically calculated and controlled by the CNC system, and can move left and right along the linear guide rail;

The height can be manually adjusted up and down, and the front and back can be manually adjusted to adapt to different lower die notches;
